Replaces art. no. 241.470.00.1
| Art. no. | 241.470.00.5 |

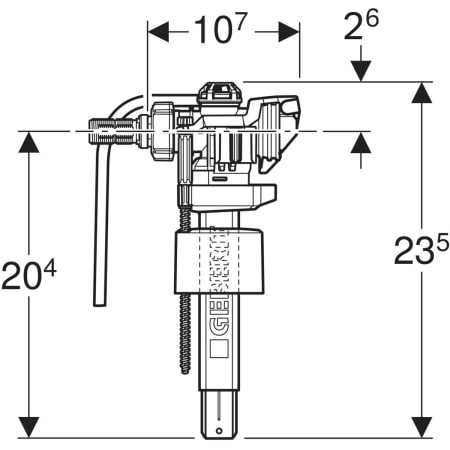

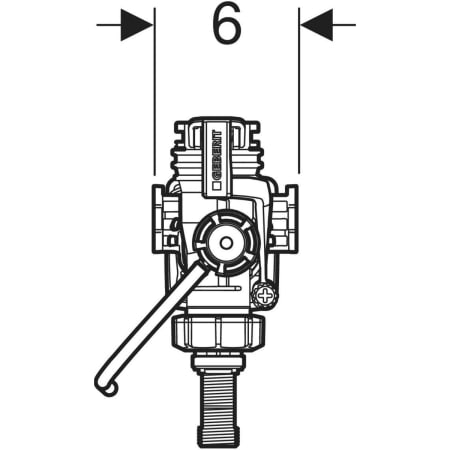

| B | 6 cm |
| H | 23.5 cm |

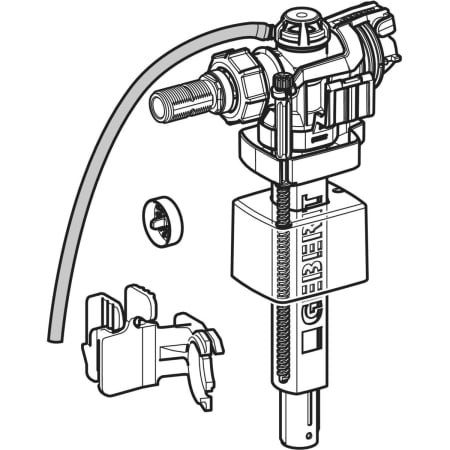

Geberit Type 383 fill valve, lateral water supply connection, 3/8", nipple made of brass
My list (0)
Technical data
Flow pressure 10–1000 kPa |
Appliance sound pressure level at 300 kPa / 3 bar 7 dB(A) |
Appliance sound pressure level at 500 kPa / 5 bar 13 dB(A) |
Storage temperature ≤ 40 °C |
Water temperature max. 25 °C |
Flow rate at 50 kPa / 0.5 bar 0.06 l/s |
Flow rate at 300 kPa / 3 bar 0.16 l/s |
Minimum flow pressure 10 kPa |
Calculated flow rate 0.09 l/s |
Flow pressure 10–1000 kPa |
Appliance sound pressure level at 300 kPa / 3 bar 7 dB(A) |
Appliance sound pressure level at 500 kPa / 5 bar 13 dB(A) |
Storage temperature ≤ 40 °C |
Water temperature max. 25 °C |
Flow rate at 50 kPa / 0.5 bar 0.06 l/s |
Flow rate at 300 kPa / 3 bar 0.16 l/s |
Minimum flow pressure 10 kPa |
Calculated flow rate 0.09 l/s |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Fastening material
Filter for nipple / reinforced braided hose types 350 and 380 filling valves
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation notice | Fill valve type 383 refill | - | |
Maintenance manual | Type 383 fill valve | - |
Fill valve type 383 refill
Type 383 fill valve
Other products
Spare parts
| # | Art. no. | Description | Remarks |
|---|---|---|---|
| 2 | 245.988.00.1 | Geberit operating part set for type 383 fill valve | |
| 4 | 240.069.00.1 | Geberit reinforced braided hose | |
| 8 | 240.922.00.1 | Geberit set of seals for reinforced braided hose | |
