- The connection pipe (1/2") from the concealed housing to the inlet crossbar via the pipe interrupter must be installed by the plumber
New

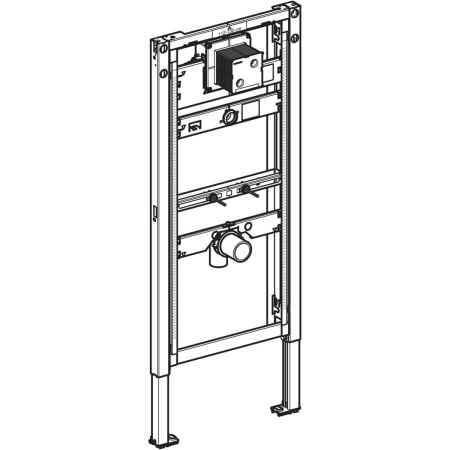

Geberit Duofix element for urinal, 112–130 cm, universal
My list (0)
Technical data
Flow pressure 100–800 kPa |
Water test pressure max. 1600 kPa |
Test pressure air / inert gas max. 300 kPa |
Water temperature max. 30 °C |
Durchfluss bei 100 kPa / 1 bar ohne Durchflussbegrenzer 0.3 l/s |
Durchfluss bei 100 kPa / 1 bar mit Durchflussbegrenzer 0.18 l/s |
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame fulfils standard requirements in accordance with ASME A112.6.2With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studsAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosionElement height adjustable to urinal, 112–130 cmConcealed housing for Geberit urinal flush controlsTerminal for electrical connection in concealed housing
Water supply connection on the right, on the concealed housingConnection nipple can be mounted without toolsPremounted stop valve with throttleWith built-in conduit pipe to rinse the pipelineProtection box for service opening 10.5 x 10.5 cm can be cut to length without toolsFastening for inlet ø 32 mm, height-adjustableFastening for connection bend, height-adjustable and sound-absorbingUrinal fasteners M8 width- and height-adjustableCrossbars with centring marks, adjustable without toolsAdditional fastening possible for urinal with accessories
Scope of delivery
Connection nipple NPT 1/2"
Protection box with cover
Connection pipe between inlet ø 32 mm and urinal, with seal to urinal
Pipe interrupter
Straight connector made of PVC, ø 50 mm
Seal ø 57 / 50 mm
Urinal trap ø 50 mm, with seal on urinal
Fastening and protection material
Documents
Your input does not return any results
Films
Spare parts
Geberit Duofix elements for urinal, 112–130 cm, universal
Geberit Duofix elements for urinal, 112–130 cm, universal
2009 -
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 2 | 242.039.00.1 | Geberit Inlet crossbar di32, for element for urinal | ||
| 2.1 | 362.790.00.1 | Geberit PE round cord ring: d=32mm, DN=30 | ||
| 3 | 152.489.16.1 | Geberit flush bend extension with sleeve: black | ||
