Replaces art. no. 109.797.00.1

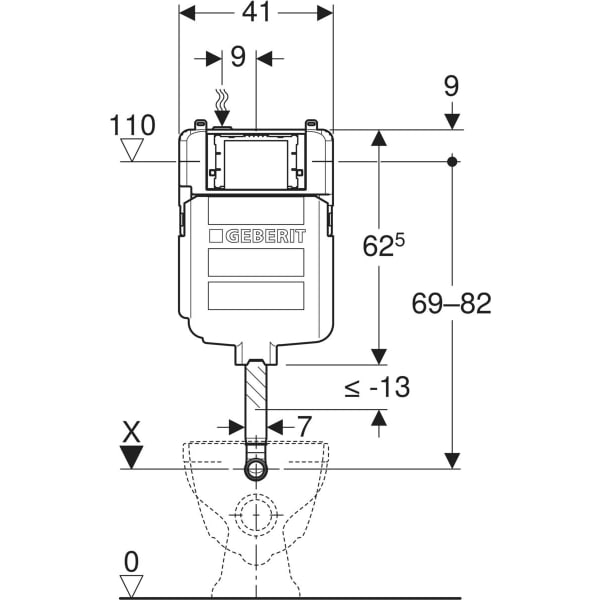

| Art. no. | 109.781.00.1 |
| B | 41 cm |
| H | 62.5 cm |

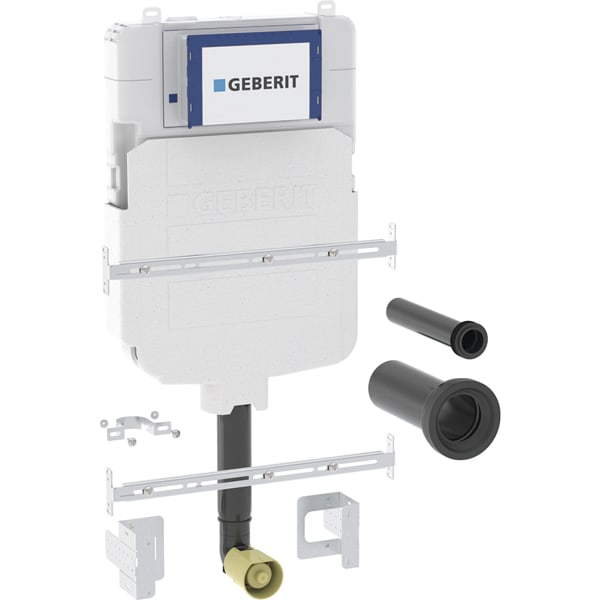

Geberit Sigma concealed cistern 8 cm, 4.8 / 3 litres
My list (0)
Technical data
Flow pressure 10–1000 kPa |
Water temperature max. 25 °C |
Flush volume, factory setting 4.8 / 3 l |
Full flush volume, adjustment range 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 3–4 l |
Product material Plastic |
Flow pressure 10–1000 kPa |
Water temperature max. 25 °C |
Flush volume, factory setting 4.8 / 3 l |
Full flush volume, adjustment range 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 3–4 l |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Range 2016Concealed cistern with front actuationConcealed cistern, fully insulated against condensationCistern fulfils standard requirements in accordance with ASME A112.6.2 and ANSI Z124.4Flush valve fulfils standard requirements in accordance with CSA B125.3, ASME A112.19.5, IAPMO PS-50, ASME A112.19.2 in connection with ceramic appliance listedFill valve fulfils standard requirements in accordance with ASSE 1002, CSA B125.3Immediate post flush possible with factory setting
Flush bend fittedTool-free installation and maintenance work on concealed cisternWater supply connection on the top leftWater supply connection, dezincification-resistantProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to length, suitable for surface-even actuator plates

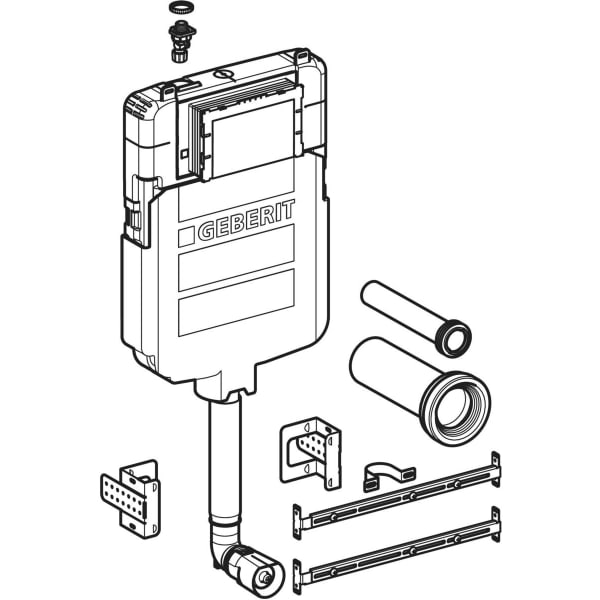

Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend 90°
Flush bend extension, ø 45 mm
Fastening for flush bend
2 sleeves made of EPDM
Protection plug
Fastening material for drywall
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | Concealed cistern Sigma 8 cm | EN | |
Maintenance manual | Sigma 8 cm concealed cistern | EN |
Concealed cistern Sigma 8 cm
EN
Sigma 8 cm concealed cistern
EN
Films
Other products
Spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 242.414.00.1 | Geberit angle stop valve for Sigma concealed cistern 8 cm | ||
| 1 | 246.175.00.1 | Geberit angle stop valve for Sigma/Omega/Alpha concealed cisterns 12 cm and Kappa concealed cistern 15 cm | ||
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | ||
