| Art. no. | 109.307.00.5 |

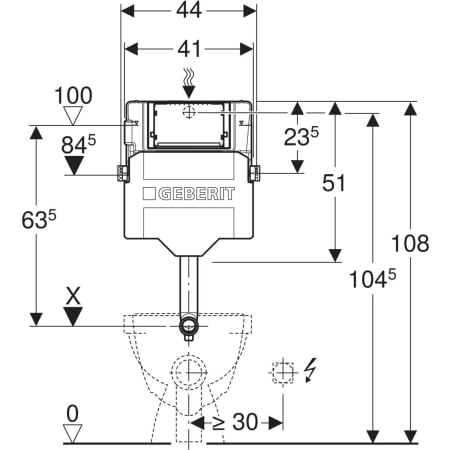

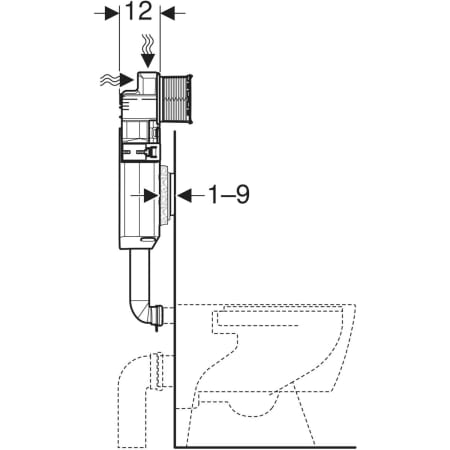

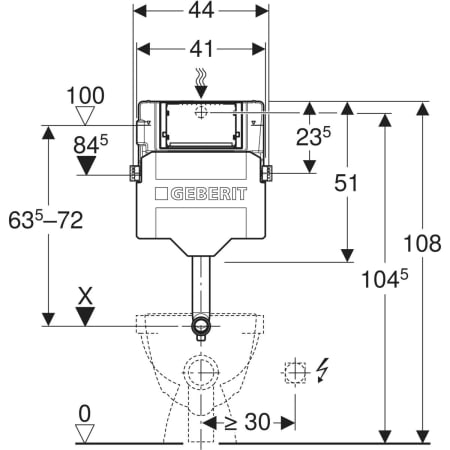

Geberit Sigma concealed cistern 12 cm, 4.8 / 3 litres
My list (0)
Technical data
Flow pressure 10–1000 kPa |
Water temperature max. 25 °C |
Flush volume, factory setting 4.8 / 3 l |
Product material Plastic |
Flow pressure 10–1000 kPa |
Water temperature max. 25 °C |
Flush volume, factory setting 4.8 / 3 l |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Concealed cistern with front actuationConcealed cistern, fully insulated against condensationCistern fulfils standard requirements in accordance with ASME A112.6.2 and ANSI Z124.4Flush valve fulfils standard requirements in accordance with CSA B125.3, ASME A112.19.5, IAPMO PS-50, ASME A112.19.2 in connection with ceramic appliance listedFill valve fulfils standard requirements in accordance with ASSE 1002, CSA B125.3Immediate post flush possible with factory setting

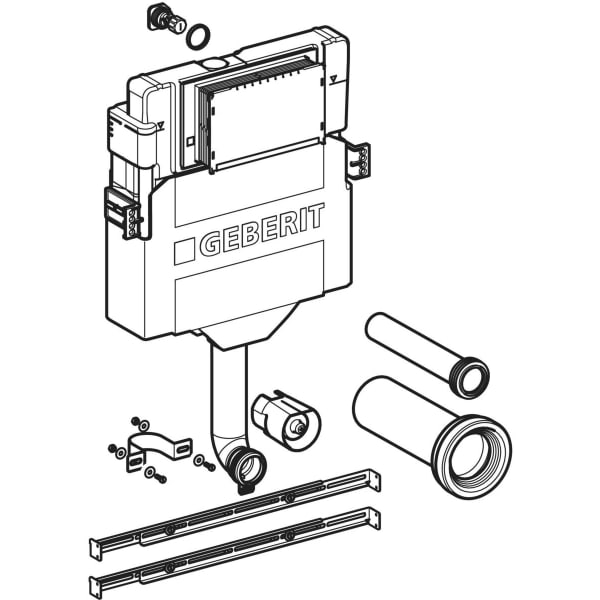

Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend 90°
2 crossbars
2 fixing brackets
Fastening material
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | Concealed cistern Sigma 12 cm | EN | |
Maintenance manual | Sigma 12 cm concealed cistern | EN |
Concealed cistern Sigma 12 cm
EN
Sigma 12 cm concealed cistern
EN
Films
Other products
Spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.269.00.1 | Geberit water supply connection with integrated angle stop valve | ||
| 1 | 240.847.00.1 | Geberit water supply connection with integrated angle stop valve, resistant to seawater | ||
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | For use with hand wheel | |
