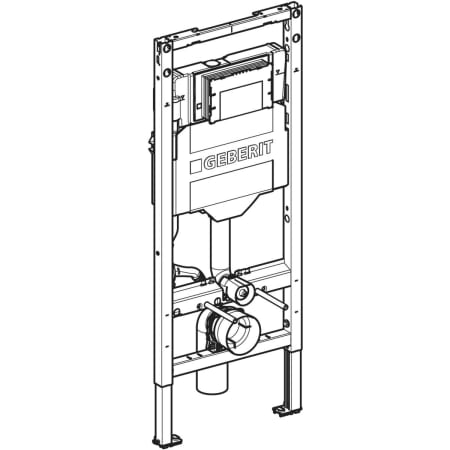

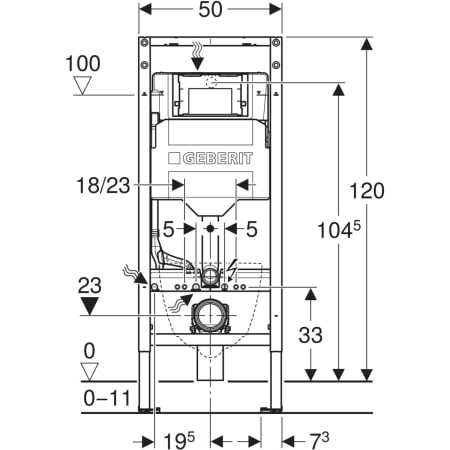

Geberit Duofix element for wall-hung WC, 120 cm, with Sigma concealed cistern 12 cm, 4.8 / 3 litres, for wood frame wall
My list (0)
Technical data
Flow pressure 10–1000 kPa |
Water temperature max. 25 °C |
Flush volume, factory setting 4.8 / 3 l |
Durchfluss bei 300 kPa / 3 bar 0.16 l/s |
Minimum flow pressure 10 kPa |
Calculated flow rate 0.09 l/s |
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame fulfils standard requirements in accordance with ASME A112.6.2, ANSI Z124.4Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70 cmFrame with ø 9 mm drilling holes for fastening in wood frame constructionAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosionConnection bend can be mounted without tools at different depths, adjustable range 45 mmGeberit Sigma concealed cistern 12 cm, fully insulated against condensation
Cistern fulfils standard requirements in accordance with ASME A112.6.2 and ANSI Z124.4Flush valve fulfils standard requirements in accordance with CSA B125.3, ASME A112.19.5, IAPMO PS-50, ASME A112.19.2 in connection with ceramic appliance listedFill valve fulfils standard requirements in accordance with ASSE 1002, CSA B125.3For front actuation, suitable for single, dual and stop-and-go flushesImmediate post flush possible with factory settingTool-free installation and maintenance work on concealed cisternWater supply connection on the rear or top centreProtection box for service opening, can be cut to length, protects against moisture and dirtWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening for electrical connection and Power & Connect Box
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Elbow tap connector 90°
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adapter socket ø 90 mm / 3''
Fastening and protection material
Documents
Your input does not return any results
Films
Spare parts
Geberit Duofix elements for wall-hung WC, with Sigma concealed cistern 12 cm (UP320)
Geberit Duofix elements for wall-hung WC, with Sigma concealed cistern 12 cm (UP320)
2002 -
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 2 | Go to the spare parts page: | |||
| 3 | 111.892.00.1 | Geberit Duofix hexagon head setscrew, self-cutting | Multipack | |
| 4 | 242.314.00.2 | Montagezubehör für Geberit Duofix Element für Wand-WC, mit Sigma Unterputzspülkasten 12 cm | 242.314.00.1 | From 2025 range |
