Replaces art. no. 111.798.00.1

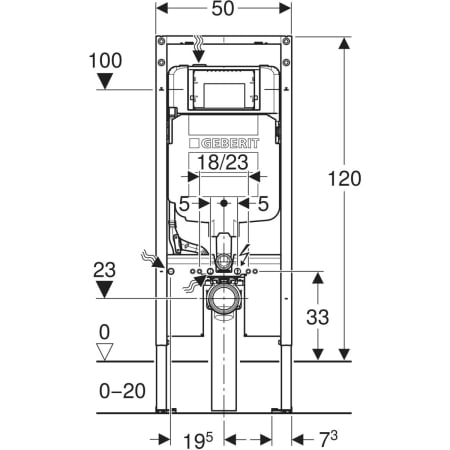

| Art. no. | 111.798.00.2 New |
| B | 50 cm |
| H | 120 cm |
New

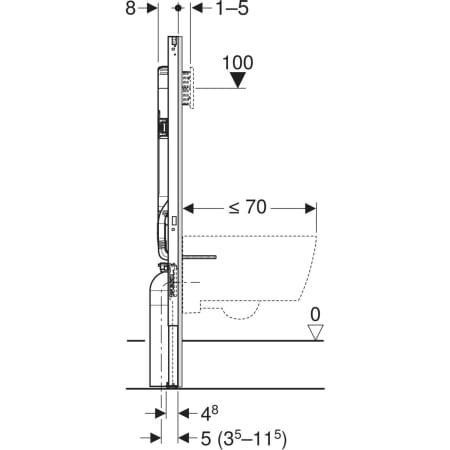

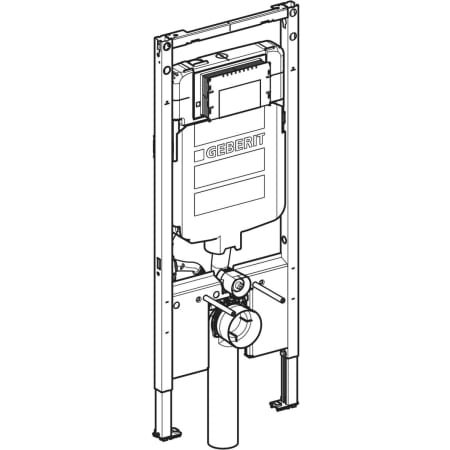

Geberit Duofix element for wall-hung WC, 120 cm, with Sigma concealed cistern 8 cm, for wood frame wall
My list (0)
Technical data
Flow pressure 10–1000 kPa |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 3–4 l |
Product material Steel |
Height-adjustable Yes |
Flow pressure 10–1000 kPa |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 3–4 l |
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70 cmFrame with ø 9 mm drilling holes for fastening in wood frame constructionFrame fulfils standard requirements in accordance with ASME A112.6.2, ANSI Z124.4Alternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosionConnection bend can be mounted without tools at different depths, adjustable range 80 mmInterrupted crossbar enables a front flush depth for the vertical outlet bendWaste connector bend, extended, for connection in floor
Geberit Sigma concealed cistern 8 cm, fully insulated against condensationCistern fulfils standard requirements in accordance with ASME A112.6.2 and ANSI Z124.4Flush valve fulfils standard requirements in accordance with CSA B125.3, ASME A112.19.5, IAPMO PS-50, ASME A112.19.2 in connection with ceramic appliance listedFill valve fulfils standard requirements in accordance with ASSE 1002, CSA B125.3For front actuation, suitable for single, dual and stop-and-go flushesImmediate post flush possible with factory settingTool-free installation and maintenance work on concealed cisternWater supply connection on the top leftProtection box for service opening, can be cut to length, protects against moisture and dirtWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connection
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Elbow tap connector 90°
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adapter socket ø 90 mm / 3''
Fastening and protection material
