With turn handle actuation

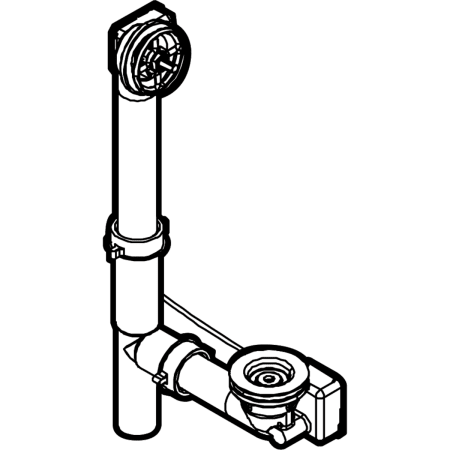

Geberit bathtub drain with turn handle, d52, length 15 cm, PP

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
151.501.00.1
DN

40

d, ø

38 mm

Technical data

Overflow discharge rate

0.8 l/s

Depth of water seal (mm)

50 mm

Application purposes

Click on an application purpose to search more products

For bathtubs made of steel, plastic or cast ironFor standard-size bathtubsFor bathtubs with drain and overflowFor bathtubs with a height of up to 406 mm
For bathtubs with a wall thickness of up to 8 mmFor bathtubs with external trapFor bathtubs with overflow hole ø 50–63 mmFor bathtubs with valve hole ø 52 mm

Characteristics

Click on a characteristic to search more products

Turn handle actuationFulfils standard requirements in accordance with ASME A112.18.2 / CSA B125.2Fulfils standard requirements in accordance with ASTM F409Fulfils standard requirements in accordance with cUPCFulfils standard requirements in accordance with ICC
Fulfils standard requirements in accordance with NPCCFulfils standard requirements in accordance with NSF/ANSI 14Meets standard requirements according to ANSI A117.1, Americans with Disabilities Act (ADA)With overflowOverflow and outlet made of PP

Scope of delivery

  • Waste outlet

  • Fastening material

  • Installation tool

  • Overflow pipe

  • Overflow assembly

  • PVC T-piece, 1 1/2"
