With turn handle actuation

Geberit bathtub drain with turn handle, d52, length 58 cm, PVC

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
151.506.00.1
DN

38

48

d, ø

38 mm

48 mm

Technical data

Depth of water seal (mm)

50 mm

Application purposes

Click on an application purpose to search more products

For bathtubs made of steel, plastic or cast ironFor bathtubs with a wall thickness of up to 8 mmFor standard-size bathtubsFor bathtubs with a height of up to 610 mm
For bathtubs with drain and overflowFor bathtubs with valve hole ø 52 mmFor bathtubs with overflow hole ø 50–63 mmFor bathtubs with external trap

Characteristics

Click on a characteristic to search more products

Turn handle actuationWith overflowOverflow and outlet made of PVCWith push-on seal
Fulfils standard requirements in accordance with ASME A112.18.2 / CSA B125.2Fulfils standard requirements in accordance with cUPCFulfils standard requirements in accordance with NPCC

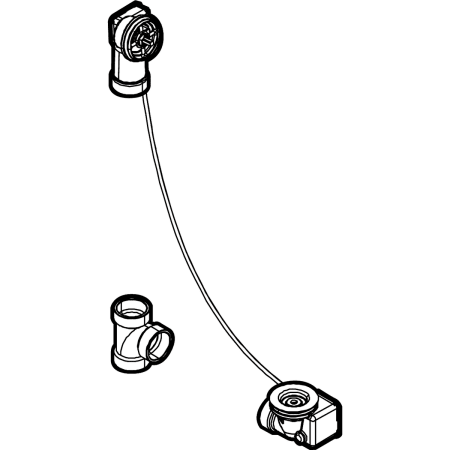

Scope of delivery

  • PVC T-piece, 1 1/2" Schedule 40

  • Overflow assembly

  • Waste outlet

  • Cable actuator

  • Installation tool

  • Fastening material

To order additionally

  • Overflow and outlet made of PVC, 1 1/2" Schedule 40

Can be combined with

Geberit ready-to-fit set d52, for bathtub drain with turn handle, plastic

Waste Fittings and Traps for Showers and Bathtubs

Geberit ready-to-fit set d52, for bathtub drain with turn handle, plastic

151.550.16.1
