Logo for geberit brand

US

With turn handle actuation

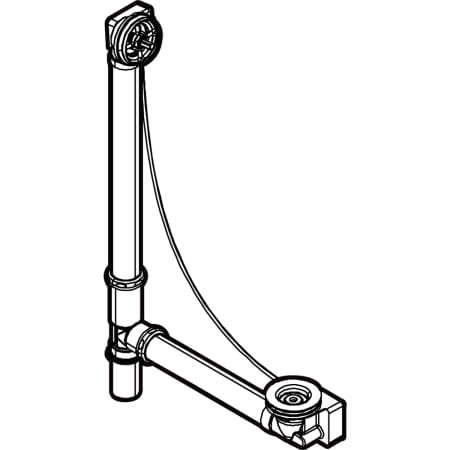

Geberit bathtub drain with turn handle, d52, length 31 cm, brass

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
151.450.00.1
DN

40

d, ø

38 mm

Technical data

Depth of water seal (mm)

50 mm

Application purposes

Click on an application purpose to search more products

For bathtubs made of steel, plastic or cast ironFor bathtubs with a wall thickness of up to 8 mmFor standard-size bathtubsFor bathtubs with a height of up to 610 mm
For bathtubs with drain and overflowFor bathtubs with valve hole ø 52 mmFor bathtubs with overflow hole ø 50–63 mmFor bathtubs with external trap

Characteristics

Click on a characteristic to search more products

Pipe 1 1/2", gauge 17Turn handle actuationWith overflowOverflow and outlet made of brass
With push-on sealFulfils standard requirements in accordance with ASME A112.18.2 / CSA B125.2Fulfils standard requirements in accordance with cUPCFulfils standard requirements in accordance with NPCC

Scope of delivery

  • T-piece made of brass, gauge 17

  • Overflow assembly

  • Waste outlet

  • Cable actuator

  • Overflow pipe

  • Outlet pipe

  • Installation tool

  • Fastening material
