With turn handle actuation

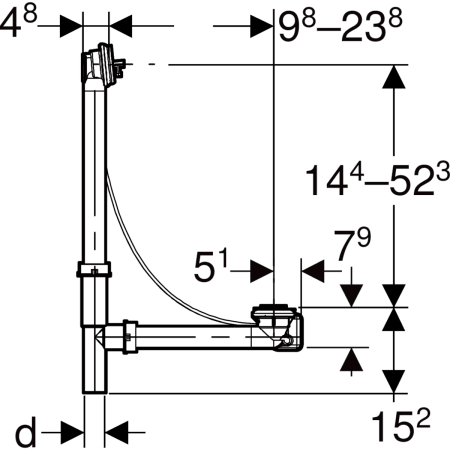

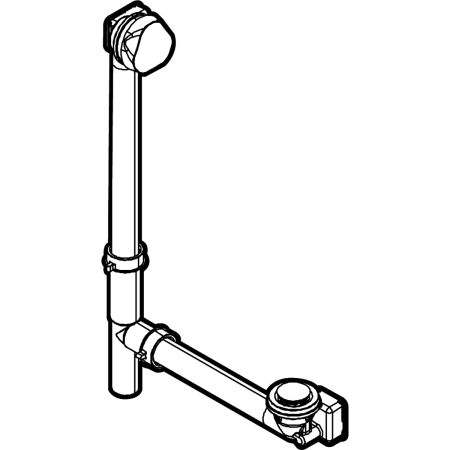

Geberit bathtub drain with turn handle, d52, length 24 cm, with ready-to-fit set, PP, brass

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
150.176.ID.1
Colour / surface

PVD nickel brushed

DN

40

Technical data

Depth of water seal (mm)

50 mm

Application purposes

Click on an application purpose to search more products

For bathtubs made of steel, plastic or cast ironFor bathtubs with a wall thickness of up to 8 mmFor standard-size bathtubsFor bathtubs with a height of up to 610 mm
For bathtubs with drain and overflowFor bathtubs with valve hole ø 52 mmFor bathtubs with overflow hole ø 50–63 mmFor bathtubs with external trap

Characteristics

Click on a characteristic to search more products

Turn handle actuationWith overflowOverflow and outlet made of PPWith push-on sealFulfils standard requirements in accordance with ASME A112.18.2 / CSA B125.2
Fulfils standard requirements in accordance with ASTM F409Fulfils standard requirements in accordance with NSF/ANSI 14Fulfils standard requirements in accordance with cUPCFulfils standard requirements in accordance with NPCCFulfils standard requirements in accordance with ICC

Scope of delivery

  • PVC T-piece, 1 1/2"

  • Overflow assembly

  • Waste outlet

  • Cable actuator

  • Overflow pipe

  • Outlet pipe

  • Installation tool

  • Fastening material

  • Ready-to-fit set made of brass
